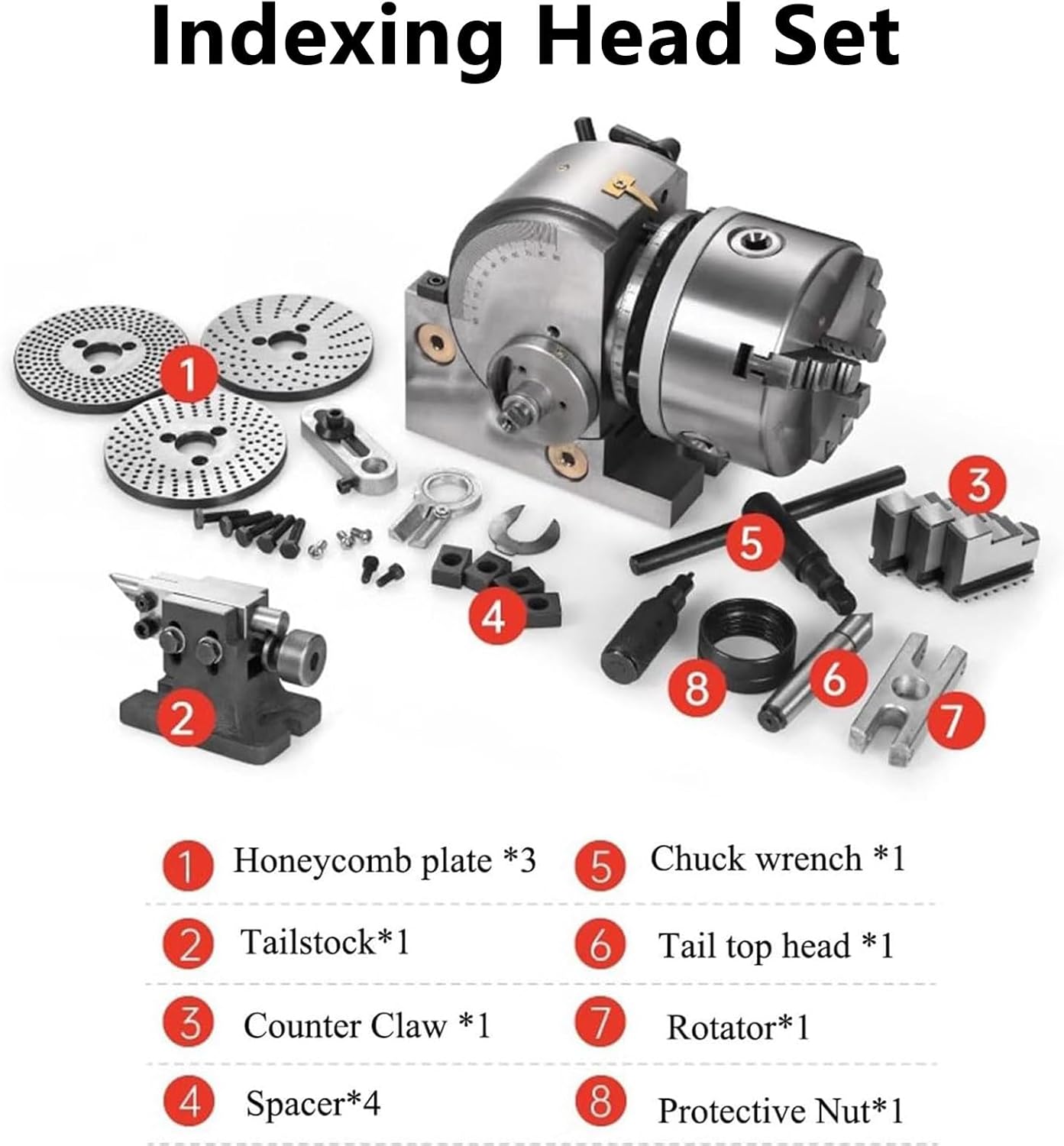

"5in Rotary Indexing Head Set for Milling Machines - Semi Universal 3-Jaw Chuck with Tailstock & Dividing Plates for Precision Milling, Grinding & Drilling"

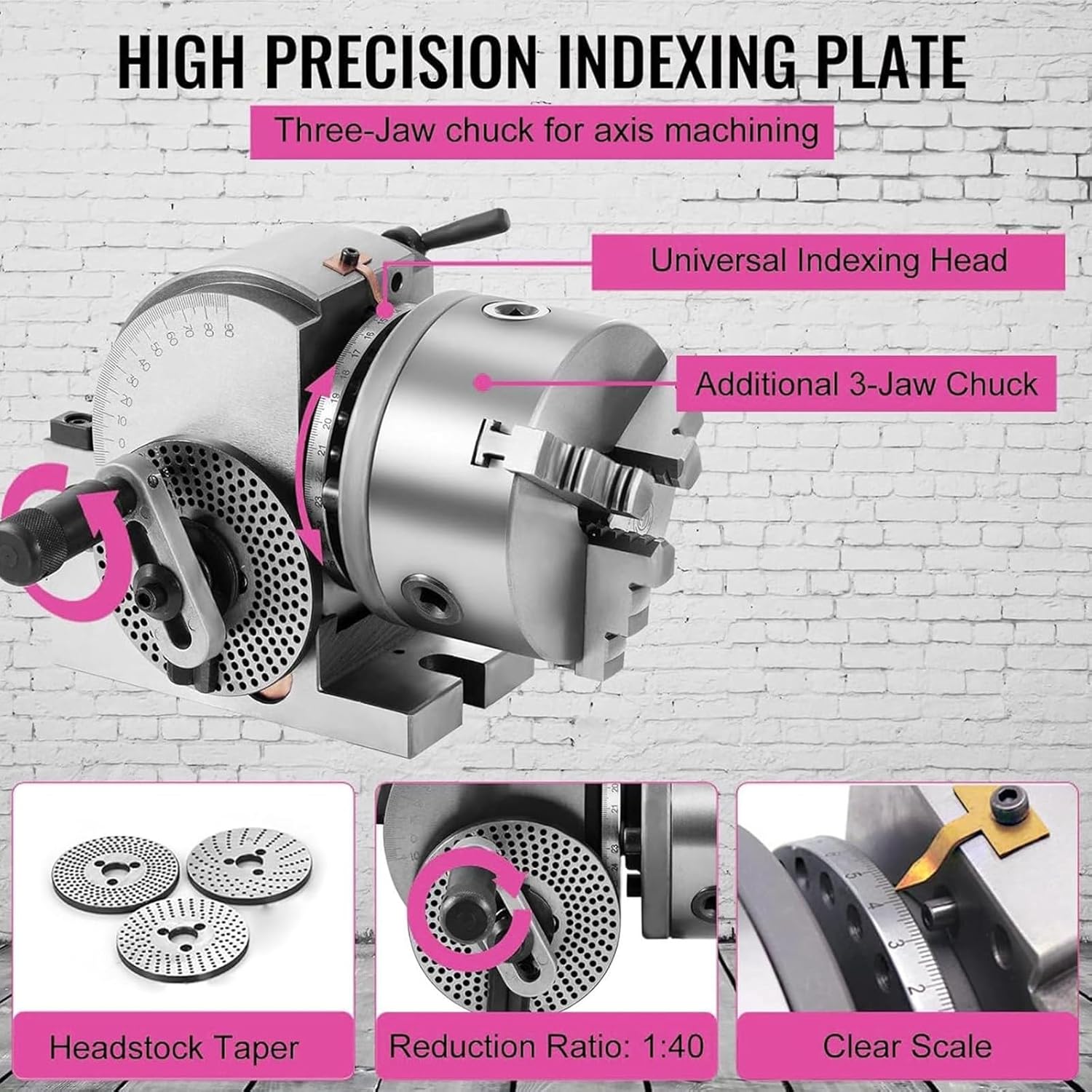

A high-precision indexing table is an invaluable addition to any machine shop, designed to enhance machining efficiency and minimize waste, ultimately leading to cost savings. **Key Advantages:** - **360° Rotating Head:** Equipped with a sturdy counter-jaw clamping system to ensure stability and precision during operations. - **Precise Scale Indicator:** Features a rotating scale with 1° fine divisions, allowing for accurate adjustments. - **Versatile Positioning:** Honeycomb plate design enables easy positioning and indexing of various workpieces. - **Adjustable Angle:** Quickly split materials with an adjustable angle range of -10° to 90°, enhancing versatility for different projects. - **Universal Indexing Head:** Offers spindle accuracy of 0.03mm and indexing accuracy of 120 seconds, ensuring excellent performance. - **Durable Construction:** Crafted from high-quality FC30 cast iron, this tool efficiently indexes workpieces like hexagonal parts, gears, and splines. - **Effortless Operation:** The 1:40 reduction ratio allows for easy handling, with an attachable three-jaw chuck suitable for shaft machining and compatible with milling machine accessories. - **Rapid Positioning:** The direct indexing plate facilitates quick splitting for 2, 3, 4, 6, 8, 12, or 24 holes, streamlining your workflow. - **Broad Application:** Ideal for milling machines, grinding machines, drilling machines, and planing machines; widely used in the automotive, mold-making, and general machinery sectors. **Product Specifications:** - Chuck Type: 3-jaw chuck - Gear Ratio: 1:40 - Size Options: 4 inches, 5 inches, 6 inches - Graduation Accuracy: 0.04° - Center Height: 100 mm (4" & 5"), 130 mm (6") - Chuck Diameter: 100 mm (4"), 125 mm (5"), 160 mm (6") - Clamping Range: 2-80 mm (4"), 2-110 mm (5"), 3-145 mm (6") - Overall Heights: 240 mm (4"), 250 mm (5"), 300 mm (6") upright; 170 mm (4" & 5"), 220 mm (6") lying - Chuck Bore: 20/30/40 - Weight: 21 kg (4"), 22 kg (5"), 29 kg (6") **P...

• 【Cast Iron Milling Machine Rotary Table】Ideal for accurate positioning and rotation of wood and metal workpieces, this versatile tool is perfect for curved machining, long hole production, and precision drilling. Commonly utilized in automotive, mold manufacturing, and general machinery sectors, it enhances efficiency and precision in various machining applications.
• Introducing our versatile Universal Indexing Head, designed for precision in various machining tasks. With a Direct Indexing Plate and two replaceable Indexing Plates featuring different hole counts, you can achieve accurate Cutting Intervals effortlessly. Ideal for both hobbyists and professionals, this tool enhances your workflow and offers reliable performance in any project.

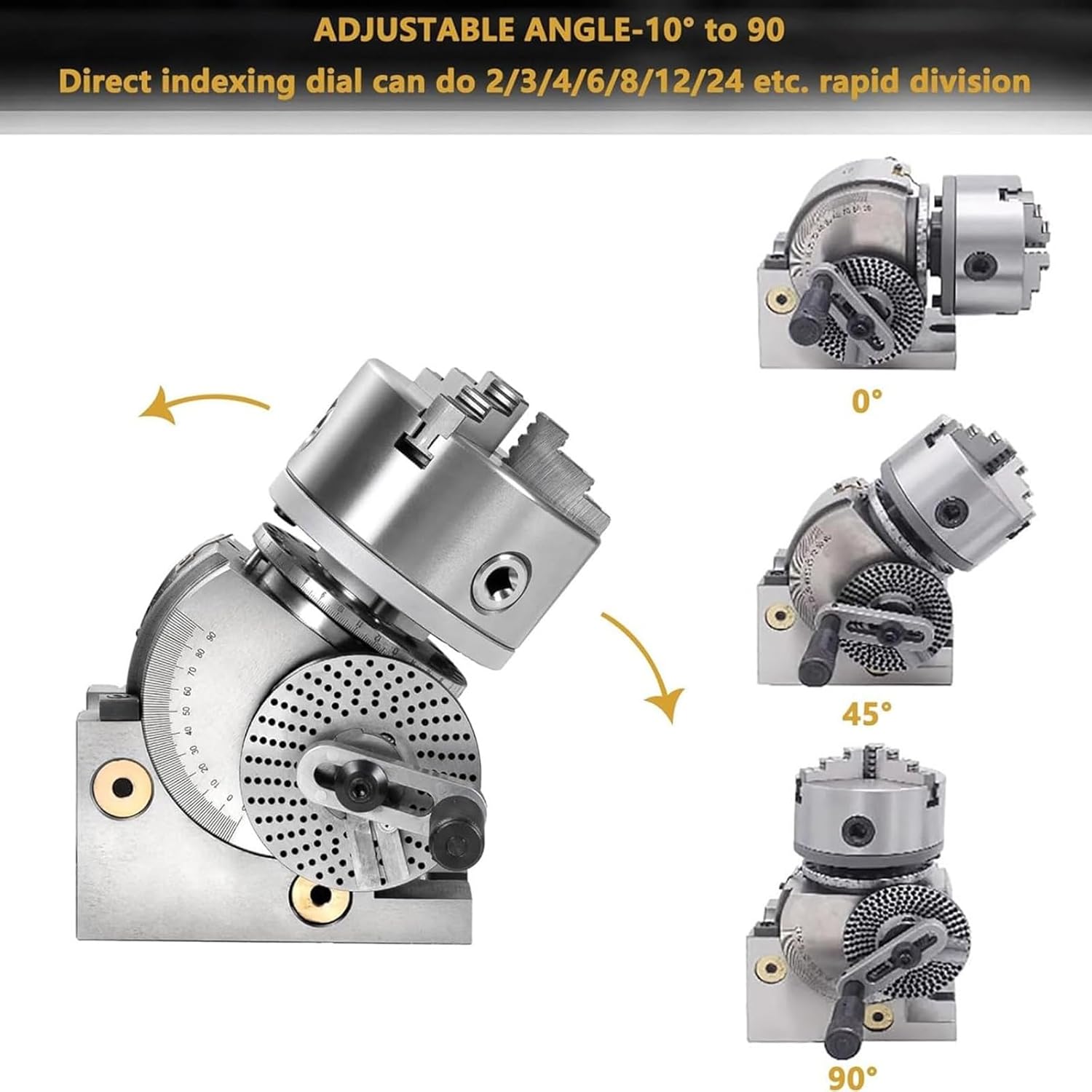

• Enhance your projects with our Milling Machine featuring a precision Rotary Table and Handwheel for accurate measurements. The engraved scales ensure easy reading, while the versatile Indexing Head tilts from 10° to 90°, allowing for effective material processing. Perfect for hobbyists and professionals alike, this machine combines functionality with user-friendly design.
• Optimize your machining experience with our Precision Indexing Head Milling Machine featuring a Laser-Engraved Scale. With 24 Quick-Indexing Holes, it allows for 2, 3, 4, 6, 8, 12, and 24 Degree Divisions. Each Circle Represents 360 Degrees, while Each Scale Mark Represents 1 Degree, ensuring accuracy and efficiency in your projects. Ideal for both professionals and hobbyists alike.
• Crafted from Premium Cast Iron, our Rotary Table offers exceptional Durability and Wear Resistance. Its High Surface Hardness minimizes Scratches, ensuring longevity. Designed with Precision Components, this tool efficiently divides materials for Accurate Cuts, making it an essential addition to any Workshop or Metalworking setup. Upgrade your projects with reliable performance.
