Worm Gear Gearbox,NMRV030 Worm Gear Speed Reducer Square Type for Nema23 Stepper Motor/Servo Motor,RV030 Output Bore/Hole 14mm Shaft (Pitch-Row: 47mm) (10:1)
5.0 (51 items)
Limited Time SaleUS$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211318830 | Release Date | 2026/04/04 | List Price | US$36.00 | Model Number | 211318830 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

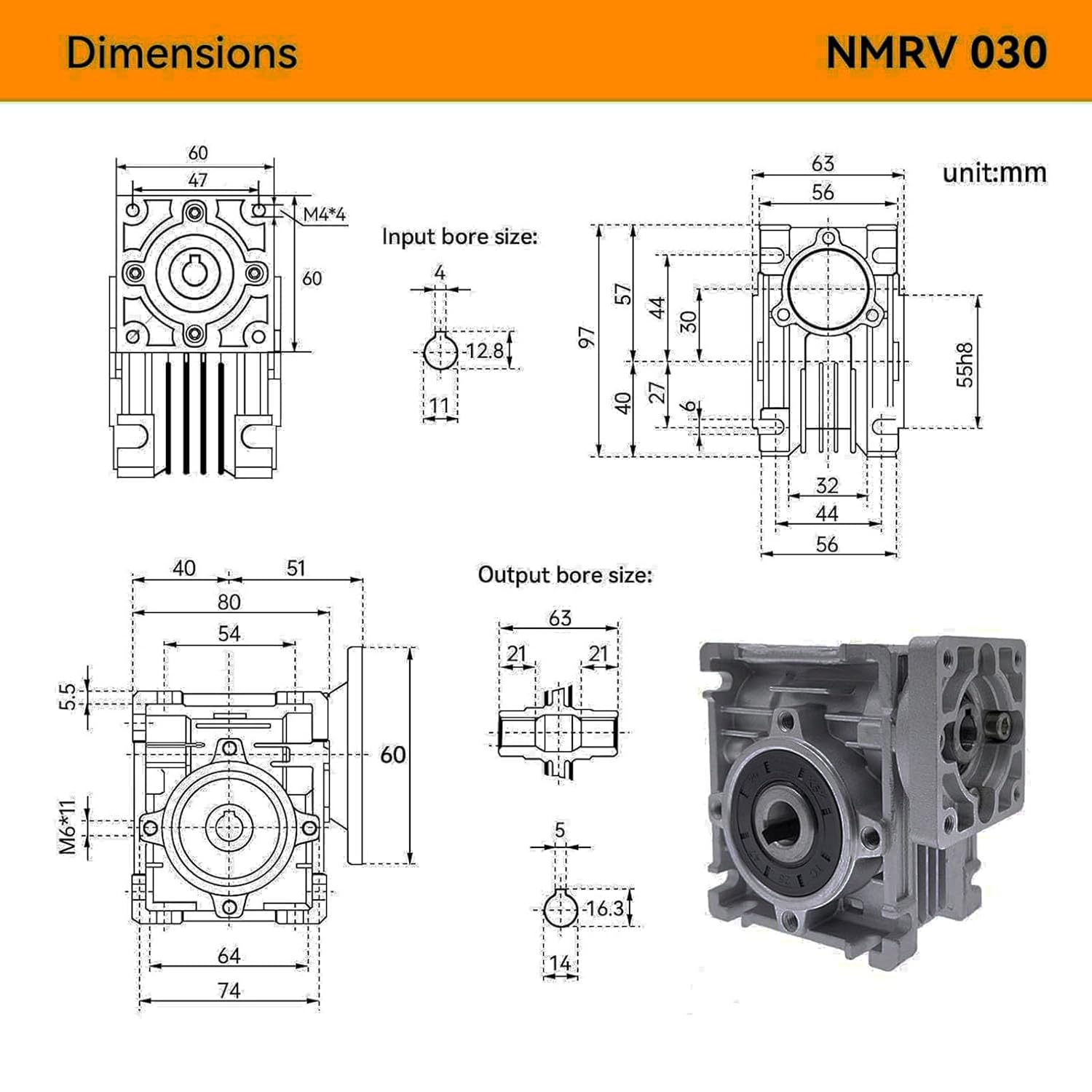

- 【Parameter】Model:NMRV030 (small), type: worm gear, speed ratio: 20:1, input hole size: 11 mm,0.43", output hole size: 14 mm,0.55", , input flange model: NEMA23, material of the service housing: aluminium alloy housing; application: suitable with omotor / step. Motor; Product Color: sliver;Pitch-Row: 47mm

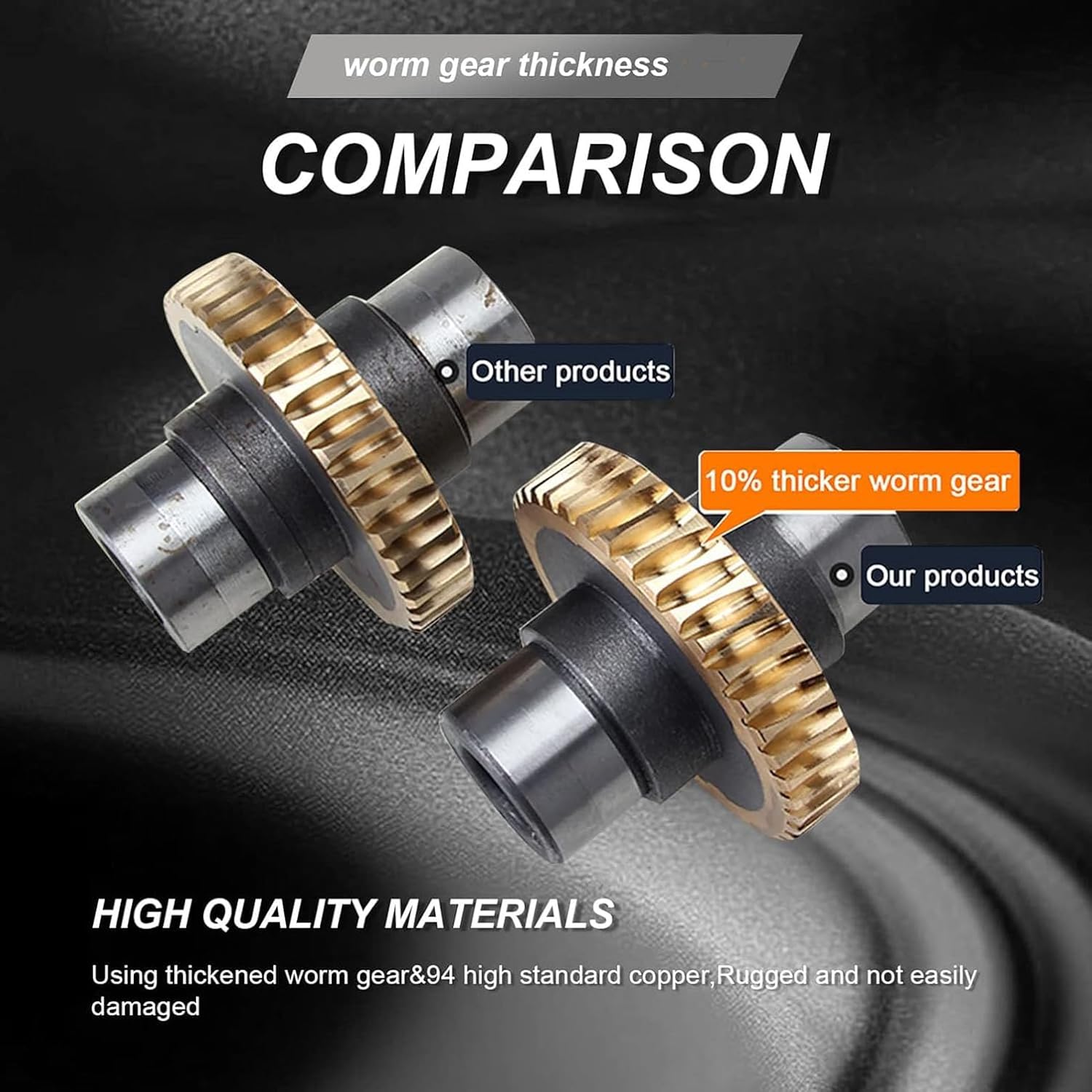

- 【Features】1.) The worm gear is made of ductile cast iron QT-400, which is well made and easy to carry. 2) The worm gear bar is made of 20CR round steel (carbonated and scared heat treatment, stable transmission and high efficiency), 3.) The reduction housing is made of high-quality ADC12 aluminium die-cast housing, strong sealing, small size, light weight, space-saving installation, not easy to corrode.
- 【High quality】This worm gear has the properties of waterproof and dustproof, and the structure of the protection class IP55 has a good insulating effect on dust and moisture. It also has the characteristics of large torque, low noise level, stable operation, strong adaptability, large overload and strong impact resistance.
- 【Wide Applications】With time delay and increased torque function,It is widely used in light industry, food industry, chemical construction, machinery and equipment, textile industry, building materials, logistics, environmental protection and other fields.
- 【Notes】1.) Do not hit the shell of the decelerator for gravity hammer to avoid damage. 2.) Pay regularly whether the functions of installation and installation, sealing, and transmission shafts are used normally. 3.) The temperature of the lubricating oil should be less than 85 ° C. When the temperature of the oil temperature changes abnormally, when the phenomenon of abnormal noise is generated, it is necessary tostop the inspection immediately. After the failure, it can continue to be used.
| Brand Name | YIDOFENG |
|---|---|
| Item Weight | 1.13 Kilograms |
| Manufacturer | YIDUFENG |
| Material Type | Cast Iron |
| Included Components | 1PC NMRV030 Worm Gear Gearbox |
